1. MODEL:

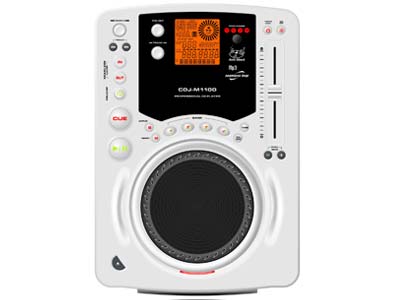

CDJ-M1100 ,CD/MP3 player .
2. POWER SOURCE:
AC 115/230V, 50/60Hz, 14.5W
3. DIMENSIONS:
348 (W)x 246 (D)x 106 (H) mm
4. WEIGHT: 3.06 kgs
5. FEATURES:
(1) Anti-shock Playback
(2) Instant Start
(3) Seamless Loop
(4) Pitch Control
(5) Full Function MP3 Playback
(6) Auto Cue
(7) Good Sound Quality
6. AUDIO CHARACTERISTICS (TEST DISC: TCD-782, LOAD=47KOHM)
ITEM TYPICAL LIMIT CONDITION
(1) OUTPUT LEVEL 2Vrms +/-0.5dB 2Vrms +/-1dB 1KHz, 0dB
(2) CHANNEL BALANCE WITHIN 0.2dB WITHIN 1dB 1KHz, 0dB
(3) FREQUENCY RESPONSE 20-20KHz +/-0.4dB 20-20KHz +/-1dB 0dB OUTPUT
(4) DE-EMPHASIS -19.8~-20.2dB -19~-21dB 16KHz,-20dB
(5) CHANNEL SEPARATION(*2) 97dB 90dB 1KHz, 0dB
(6) THD+N (*1) 0.005% 0.01% 1KHz, 0dB
(7) S/N (*2) 120dB 90dB 1KHz, 0dB
NOTE:
*1: WITH 20KHz LOW PASS FILTER.
*2: WITH 20KHz LOW PASS FILTER, "IHF-A" WEIGHTED.
7. SEARCHING TIME (TEST DISC: TCD-792)
ITEM TYPICAL LIMIT CONDITION
(1) SHORT ACCESS TIME: 2Sec 4Sec PLAY NEXT TRACK
(2) LONG ACCESS TIME: 4Sec 6Sec TRACK 1 TO 20,20 TO 1
8. PLAYABILITY
ITEM TYPICAL LINIT CONDITION
(1) INTERRUPTION 1mm 0.7mm TCD-725
(2) BLACK DOT 1mm 0.6mm TCD-725
(3) FINGER PRINTS 75um 65um TCD-725
(4) ECCENTRICITY 140um 140um TCD-712 W/O TRACK JUMP
(5) VERTICAL DEVIATION 1mm 0.5mm TCD-731R
9. PICK-UP
(1) System Object lens drive system optical pick-up
(2) Object lens drive system 2 dimensional parallel drive
(3) Tracking detection 3 spot beam detection
(4) Optical source Semiconductor laser
(5) Wave length 780nm
10. GENERAL
(1) System Compact Disc Digital Audio
(2) Disc loading Front loading
(3) Display LCD
(4) Pitch control range Within +/-4%,+/-8%,+/-16%(+/-100% for CD)
(5) Pitch bend +/-4%,+/-8%,+/-16%(+/-100% for CD)
(6) Pitch accuracy +/-0.15 %
11. ENVIRONMENTAL CONDITION
(1) Operating Temperature 5 to 35 deg. C
(2) Humidity 25 to 85% RH (non-condensing)
(3) Storage Temperature -20 to 60 deg. C
12. ACCESSORIES
(1) 2P RCA path cord L/R 1 pairs
(2) Operating Instruction 1 pc
(3) Auto-start cable 1 pc
(4) AC power cord 1 pc
13. NOTES
(1) The specifications are subject to change to any improvement by negotiations in advance.
(2) The parts are subject to change to any improvement within the range of the specifications.
14. MP3 FORMAT
Disc Format |
Applicable file extensions |
mp3 . MP3 . mP3 . Mp3 |
ISO9660 |
Level 1(max. 8”/8.3” character style) |
Level 2(max. 31/30 character style) |
Joliet |
max. 64/64 character style |
CD-ROM sector format |
mode-1 only |
Max. number of Folders |
255 |
Max. number of files |
max. 999 files (* note #1) |
MP3 Format |
MPEG 1 Layer 3 standard (ISO/IEC 11172-3), which provides for single channel (‘mono’) and two-channel (‘stereo’) coding at sampling rates of 32, 44.1 and 48kHz. |
|
MPEG 2 Layer 3 standard (ISO/IEC 13818-3), which provides for similar coding at sampling rates of 16, 22.05 and 24 kHz. |
|
MPEG 2.5 Layer 3 standard, which provides for similar coding at sampling rates of 8, 11.025 and 12 kHz. |
|
Disc Writing Method |
Disc at Once and Track at Once |
|
Multi Session |
If the 1st session is CDDA, you can playback
Only CDDA track, If the 1st session is
MP3, you can playback only MP3 file. |
Note #1: max.255 files each folder |
Model No.: CDJ-M1100
