Description:

• 8 times over sampling 1 bit D/A converter.
• Auto cue.
• Pitch display.
• +10 Track skip search.
• Digital out
• Pitch range: +/-4%,+/-8%,+/-16%
• Selectable elapsed, remain and total remain time display


1. APPLICATION

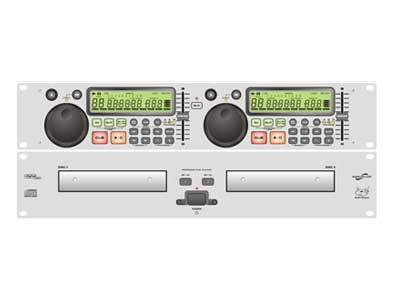

Model CDJ-2900, Dual CD player with wired remote control.

2. POWER SOURCE
AC 115/230V, 50/60Hz, 21Watts

3. DIMENSIONS
Main Unit                482(W)x 88.8(H)x 262.5(D)mm
Control Unit     482(W)x 88.8(H)x 94 (D)mm

4. WEIGHT
Main Unit                5 Kgs
Control Unit     1.8 Kgs

5. FEATURES

1. 8 times over sampling 1 bit D/A converter.
2. Auto cue.
3. Pitch display.
4. +10 Track skip search.
5. Digital out
6. Pitch range: +/-4%,+/-8%,+/-16%
7. Selectable elapsed, remain and total remain time display
8. Single/Continuous
9. Relay play allow consecutive playback during two decks
10. Frame search
11. 4 fast search mode
12. Transport protection
13. Seamless Loop
14. 10 seconds Anti Shock Protection (per side)
15. Relay playback
16. Tap Sync Button

6. AUDIO CHARACTERISTICS (TEST DISC: TCD-782, LOAD=47KOHM)
ITEM                               TYPICAL                 LIMIT                          CONDITION
(1) OUTPUT LEVEL                       2Vrms +/-0.5dB     2Vrms +/-1dB       1KHz, 0dB
(2) CHANNEL BALANCE              WITHIN 0.1dB        WITHIN 1dB         1KHz, 0dB
(3) FREQUENCY RESPONSE         20-20KHz +/-0.4dB         20-20KHz +/-1dB          0dB OUTPUT
(4) DE-EMPHASIS                          -20dB+2.4/-0dB       -20dB+3/-0dB        16KHz,-20dB
(5) CHANNEL SEPARATION (*2) 89dB                        80dB                      1KHz, 0dB
(6) THD+N (*1)                               0.01%                      0.03%                    1KHz, 0dB
(7) S/N (*2)                                     92dB                        85dB                      1KHz, 0dB
Note:  *1: WITH 20KHz LOW PASS FILTER.
*2: WITH 20KHz LOW PASS FILTER AND "IHF-A" WEIGHTED.

7. SEARCHING TIME (TEST DISC: TCD-792)
ITEM                           TYPICAL          LIMIT            CONDITION
(1) SHORT ACCESS TIME        2Sec                   4Sec               PLAY NEXT TRACK
(2) LONG ACCESS TIME                  4Sec                   6Sec               TRACK 1 TO 20,20 TO 1

8. PLAYABILITY
ITEM                                  TYPICAL          LIMIT              CONDITION
(1) INTERRUPTION                      1mm                  0.7mm             TCD-725
(2) BLACK DOT                           1mm                  0.6mm             TCD-725
(3) FINGER PRINTS                      75um                65um              TCD-725
(4) ECCENTRICITY                      140um              140um             TCD-712 W/O TRACK JUMP
(5) VERTICAL DEVIATION        1mm                  0.5mm             TCD-731R

9. PICK-UP
(1) System                                             Object lens drive system optical pick-up
(2) Object lens drive system                  2 dimensional parallel drive
(3) Tracking detection                           3 spot beam detection
(4) Optical source                                  Semiconductor laser
(5) Wave length                                     780nm

10. GENERAL
(1) System                                              Compact Disc Digital Audio
(2) Disc loading                                      Front loading
(3) Display                                             11 Digital LCD Display
(4) Pitch control range                            Within +/-4%,+/-8%,+/-16%
(5) Pitch bend                                         +/-16%
(6) Pitch accuracy                                  +/-0.15 %
(7) Digital out level                                0.5V+/-0.1 p-p  @ LOAD = 75 ohm (option)

11. ENVIRONMENTAL  CONDITION
(1) Operating Temperature                    5 to 35 deg. C
(2) Humidity                                         25 to 85% RH (non-condensing)
(3) Storage Temperature                        -20 to 60 deg. C

12. ACCESSORIES
(1) 2P RCA path cord                             L/R 2 pairs
(2) 8P cable rightangle                          1 pc (1M)
(3) Operating Instruction                        1 pc
(4) Auto-start cable                                 2 pc
(5) AC power cord                                 1 pc

13. NOTES
(1) The specifications are subject to change to any improvement by negotiations in advance.
(2) The parts are subject to change to any improvement within the range of the specifications.
