1. Power source
AC 9V, 500mA.
2. Dimensions
228 (W) x 236 (D) x 81.6 (H) mm
3. Weight
1.2 Kgs
4. Features
- Input pain control per channel.
- High level master output, high current phones output.
- Power on/off muting.
- Low sound leakage crossfader.
- Low distortion (0.003%), low noise (S/N=111dB)
5. Input/output impedance & sensitivity (Master 0dBV output, load=100K Ohm. Maximum gain)
Line 10K OHM /-14dBV (200mV) +/-2dB
Phono 47K OHM /-50dBV (3.16mV) +/-2dB
Mic 2.2K OHM /-60dBV (1mV) +/-2dB
Master 1K OHM
Phones (Load=32 ohm) 33 OHM /-2dBV (794mV) +/-2dB (Cue selector at CH1+2)
6. Frequency response (Master out, EQ flat)
Line 20 - 20K Hz +/-1dB
Phono 20 - 20K Hz +1/-2dB (RIAA)
Mic 20 - 20K Hz +1/-2dB
7. THD + N (Master 0dBV output, maximum gain, w/20kHz LPF)
Line Less than 0.02% 20-20KHz
Note : 0dBV=1Vrsm
8. Maximum input (1KHz, master out, THD=0.5%, EQ flat, maximum gain)
Line More than +4dBV
Phono More than -32dBV
Mic More than -42dBV
9. Maximum output (Master out, THD=1%, maximum gain, EQ flat)
Master More than +18dBV (8.0V) at load=100K OHM
Phones More than +4dBV (1.6V) at load=32 OHM
10. Output noise (Maximum gain, EQ flat, w/20KHz LPF, A-weighted)
Line Less than -90dBV
Phono Less than -70dBV
Mic Less than -60dBV
11. Crosstalk
Line More than 70dB at 1KHz between L and R
More than 70dB at 1KHz between channels
12. Fader maximum attenuation
Channel fader Less than -80dB at 1KHz
Crossfader less than -80dB at 1KHz
13. Channel balance Within 3dB |

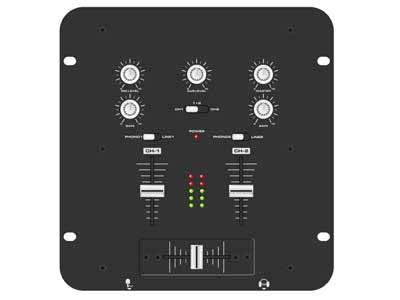

Model No.: MX-1000
