Key Features :

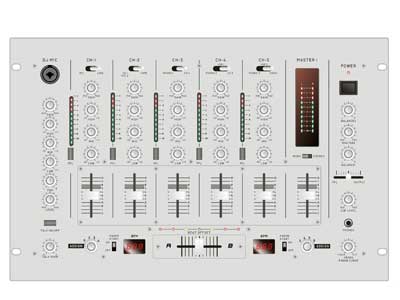

• Five-Channel rack mount mixer
• Two USB jacks
• USB input for connecting computers for audio input
• USB output for recoding to compter
• Three-band EQ each channel
• Replaceable corssfader




1. POWER CONSUMPTION
AC 120V, 60Hz, 34 Watts.

2. DIMENSIONS
483 (W) x 310 (D) x 112 (H) mm

3. HEADPHONE IMPEDANCE
32 Ohms

4. WEIGHT
6.8 Kgs

5. INPUT/OUTPUT IMPEDANCE & SENSITIVITY：
LINE/TAPE/CD/VIDEO                     47K OHM / -9.4dBV (340mV)       +2/-3dBV
PHONO                                              47K OHM / -50dBV (3mV)     +/-3dBV
MICROPHONE                                  3K OHM / -56dBV (2mV)               +/-3dBV
DJ MICROPHONE                             3K OHM / -48dBV (4mV)               +/-3dBV
MASTER OUTPUT(1/2)                     1K OHM / +3.8dBV (1.55V)   +/-3dBV @ LOAD=1K OHM
REC OUTPUT                                    1K OHM / -2.2dBV (775mV)  +/-3dBV @ LOAD=10K OHM
PHONES                                   33 OHM /+9.5dBV (3V)          +/-3dBV (CUE/PGM，Load=32 ohm)
MASTER XLR　　　 　　　　　　200 OHM / +10.3dBm (2.55V)       +/-3dBV @Load=600 ohm
Note：0dB=1Vrms, LOAD 47K Ohms.

6. MAXIMUM OUTPUT： (LOAD=47K Ohms，T.H.D.=5%)
MASTER OUTPUT                            More than 18dBV (8V)
REC OUTPUT                                    More than 10dBV (3.1V)
PHONES (LOAD=33 OHMS)             More than 10dBV (3.2V)

7. CHANNEL BALANCE：                    Within 3dBV

8. FREQUENCY RESPONSE： (EQ FLAT,MAXIMUM GAIN，OUTPUT LEVEL =0dB，LOAD=47K OHM)
LINE/TAPE/CD/VIDEO                     20Hz - 20KHz +2dBV/-3dBV
PHONO                                              20Hz - 20KHz +2dBV/-3dBV (RIAA)
MICROPHONE                                  20Hz - 20KHz +2dBV/-3dBV
USB                                                    17Hz - 20KHz +2dBV/-3.5dBV

9. OUTPUT NOISE：(IEC-A，WEIGHTED)
LINE/TAPE/CD/VIDEO/USB             Less than -78dBV
PHONO                                              Less than -66dBV
MICROPHONE                                  Less than -60dBV

10. T.H.D + N：(EQ FLAT，MAXIMUM GAIN，OUTPUT LEVEL =0dB，W/ 20KHz LPF)
MASTER OUTPUT                            Less than 0.05% (LOAD=47K OHMS)
PHONES                                            Less than 0.3% (LOAD=32 OHMS)

11. CROSSTALK：(MAXIMUM GAIN，EQ FLAT, OUTPUT LEVEL =0dB，W/ 20KHz LPF)
More than 60dBV AT 1KHz BETWEEN L,R AND CHANNELS (LOAD=47K OHMS)

12. CHANNEL EQUALIZER：
BASS                                                  +12 / -24 ± 3dB at 70Hz
MID                                                    +12 / -24 ± 3dB at 1KHz
TREBLE                                             +13 / -15 ± 3dB at 13KHz

13. DJ MIC EQUALIZER：
BASS                                                  +12 /-12 ± 2dBV at 70Hz
MID                                                    +12 /-12 ± 2dBV at 1KHz
TREBLE                                             +12 /-12 ± 2dBV at 13KHz

14. ATTENUATION OF TALKOVER：          -14 ± 2dBV

15. USB TEST CONDITION：
PLAY SECTION
TEST DISC 0dB 1KHz
COMPUTER OUTPUT FULL SCALE, THEN ADJ. THE MIXER GAIN CONTROL TO STANDARD
OUTPUT.
COMPUTER EQ FLAT
REC/PLAY SECTION：
Line IN                                   -9.4dBV (340mV)   OUTPUT: +3.8dB ±3dBV
COMPUTER FULL SCALE IN AND OUT
COMPUTER EQ FLAT
FORMAT：44.1KHz 16 BIT STEREO RECORDING

16. ACCESSORIES

1.  Operating Instruction                     1 pc
2. AC power cord                 1 pc
