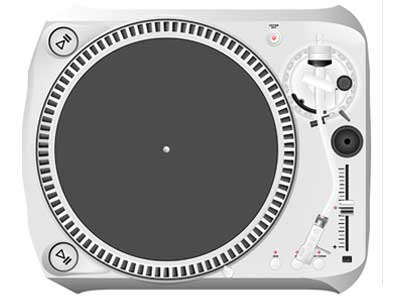

DJ-U1160 USB Direct Drive Turntable

Model No.: DJ-U1160

Description:
2-Speed full manual 8pole,2phase,brushless DC motor direct drive turntable with USB Rec. funtion.

[Specificatoins]

1. APPLICATION:
This specification applies to the direct drive turntable unit DJ-U1160A

2. STANDARD TEST CONDITION:
2-1 Ambient Temperature             3 +/- 2 degC
2-2 Relative Humidity                     65% +/- 5%
NOTE: Measurements can be carried out between 5 degC to 35 degC and 45% to 85% relative humidity.

3. TURNTABLE SECTION:
3-1 Type                                          2-speed full manual
3-2 Motor                                          8pole,2phase,brushless DC motor
3-3 Driving Method                         Direct drive
3-4 Turntable Platter                       330mm dia. Aluminum diecast
3-5 Speeds                                       331/3 and 45 rpm
3-6 Wow and Flutter                        Less than 0.15% WRMS (JIS WTD) with 331/3rpm
3-7 Pitch Controls                            +/- 10%
3-8 Braking System                         Electronic brake
3-9 Starting Torque                          More than 1kgf.cm
3-10 S/N Ratio                                 More than 60dB (DIN-B)
3-11 Starting Time                            Less than 1 sec with 331/3
3-12 Braking Time                           Less than 1 sec. with 331/3
3-13 Time for Speed Change
Less than 1 sec. from 331/3 to 45 rpm.
Less than 1 sec. from 45 to 331/3 rpm.
3-14 USB Function                          USB rec. Function
             A/D,D/A                         16BIT 44.1KHz or 48KHz USB SELECTABLE
Computer interface           USB 1.1 COMPLIANT WINDOWS XP or MAC OSX

  4. TONEARM SECTION:



4-1 Type

Static balanced S-shaped tonearm with detachable headshell



4-2 Effective Arm Length

230.5mm



4-3 Tracking Error Angle

Less than 3 degree



4-4 Applicable Cartridge Weight

6~10g



4-5 Anti-skating Range

0-4g



4-6 Phono Output Level
4-7 Line Output Level

1.5~3.6mV at 1KHz 5cm/sec (HP-4005)
90~216mV at 1KHz 5cm/sec (HP-4005)



4-8 Frequency Response

20Hz-20KHz



4-9 Channel Separation

More than 15dB



4-10 Channel Balance

Within 2.5dB at 1KHz



4-11 Needle Pressure range

3~4g



4-12 High of cue(first track)

6~10.5mm



4-13 Descend of cue

1~3sec

5. EQ AMP:
5-1 Output                     150mV +/-4dB (IN: 2.5 mV 1KHz)
5-2 RIAA                      20Hz~20KHz +1/-3dB (IN: 1.5 mV 1KHz)

6. GENERAL SECTION:
6-1 Power Supply                            AC 115/230V,50/60Hz
6-2 Power Consumption                  8 Watts
6-3 Dimensions                                       449 (W) x 370 (D) x 145 (H) mm
6-4 Weight                                       6.5 Kgs

7. ACCESSORIES SUPPLIED
Instruction manual x 1,
Headshell x 1, Cartridge x 1,
45 rpm adaptor x 1,
Counter weight x 1, AC cord x 1,
RCA cable x 1, Platter x1
Slipmat x 1, Target light x 1
USB cable x 1, DISC x 1

8. SPECIFICATION



DESCRIPTIONS

UNIT

NORMAL

LIMIT



(1) Output Difference

dB

2.3

2.5



(2) Phono Output Level

mv

1.7~3.5

1.5~3.6



(3) Line Output Level

mv

102~210

90~216



(4) Speed (Speed Range) +/- 10%

Hz

2700↓,3300↑

2710↓,3290↑



(5) Speed (Center Range)

Hz

2995~3005

2990~3010



(6) Wow and Flutter

0.13

0.15



(7) Channel separation

dB

16

15

NOTE: CARTRIDGE(AT3600L)
