1. MODEL:

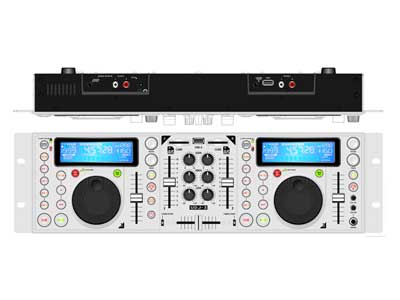

UDJ-3 , USB And Dual SD Card MP3 Player
2. POWER SOURCE:
DC 6V, 2A
3. DIMENSIONS:
482(W) x 88(D) x 120.4(H)mm
4. WEIGHT:
2 kgs
5. FEATURES:
(1) Full Functional MP3 Playback
(2) Fast Track Search
(3) Big LCD Display with Backlight
6. AUDIO CHARACTERISTICS (LOAD: LINE= 100K ohm, TEST SIGNAL FORMAT: MP3,128Kbps)
ITEM |
TYPICAL |
LIMIT |
CONDITION |
(1) OUTPUT LEVEL |
2V +/-0.5dB |
2V +/-1dB |
1KHz, 0dB (TCD-782 TRK.2) |
(2) CHANNEL BALANCE |
WITHIN 0.5dB |
WITHIN 1dB |
1KHz, 0dB (TCD-782 TRK.2) |
(3) THD+N(*1): |
0.006% |
0.02% |
1KHz, 0dB (TCD-782 TRK.2) |
(4) S/N RATIO(*2): |
98dB |
90dB |
1KHz, 0dB (TCD-782 TRK.2, 8) |
(5) L/R SEPARATION(*2): |
98dB |
90dB |
1KHz, 0dB (TCD-782 TRK.9, 11) |
(6) DYNAMIC RANGE(*2): |
93dB |
85dB |
1KHz, -60dB (TCD-782 TRK.18) |
(7) FREQUENCY RESPONSE: |
17-16KHz +/-0.2dB |
17-16KHz +/-1dB |
(TCD-781 TRK.1,4 & 16) |
NOTES: *1: WITH 20KHz LOW PASS FILTER.
*2: WITH 20KHz LOW PASS FILTER, "IHF-A" WEIGHTED.
7. GENERAL:
(1) Display LCD
(2) Pitch control range Within +/-4%, +/-8%, +/-16%
(3) Pitch bend +/-4%, +/-8%, +/-16%
(4) Pitch accuracy +/-0.15 %
8. ACCESSORIES:
(1) Operating Instruction 1 pc (3) Switching adaptor 1 pc
(2) 2P RCA cord L/R 2 pairs (4) Auto-start cable 2 pc
9. MP3 FORMAT
Disc Format |
Applicable file extensions |
mp3 . MP3 . mP3 . Mp3 |
Max. number of Folders |
999 |
Max. number of files |
max. 999 files |
MP3 Format |
MPEG 1 Layer 3 standard (ISO/IEC 11172-3), which provides for single channel (‘mono’) and two-channel (‘stereo’) coding at sampling rates of 32, 44.1 and 48kHz. |
32/40/48/56/80/96/112/128/160/192/224/256/320 kbps
Xing/VBRI VBR |
MPEG 2 Layer 3 standard (ISO/IEC 13818-3), which provides for similar coding at sampling rates of 16, 22.05 and 24 kHz. |
32/40/48/56/64/80/96/112/144/160 Kbps |
MPEG 2.5 Layer 3 standard, which provides for similar coding at sampling rates of 8, 11.025 and 12 kHz. |
32/40/48/56/64/80/96/112/144/160 Kbps |
|
Model No.: UDJ-3
